GL41W

GL41W filter

The Y-type filter is a necessary filtering device for hydraulic control valves and precision mechanical products that are

 prone to clogging. It is an indispensable device in the pipeline series for transporting media, usually installed at the

 inlet end of equipment such as hydraulic control valves, pressure reducing valves, pressure relief valves, and constant water level valves.

Detailed information

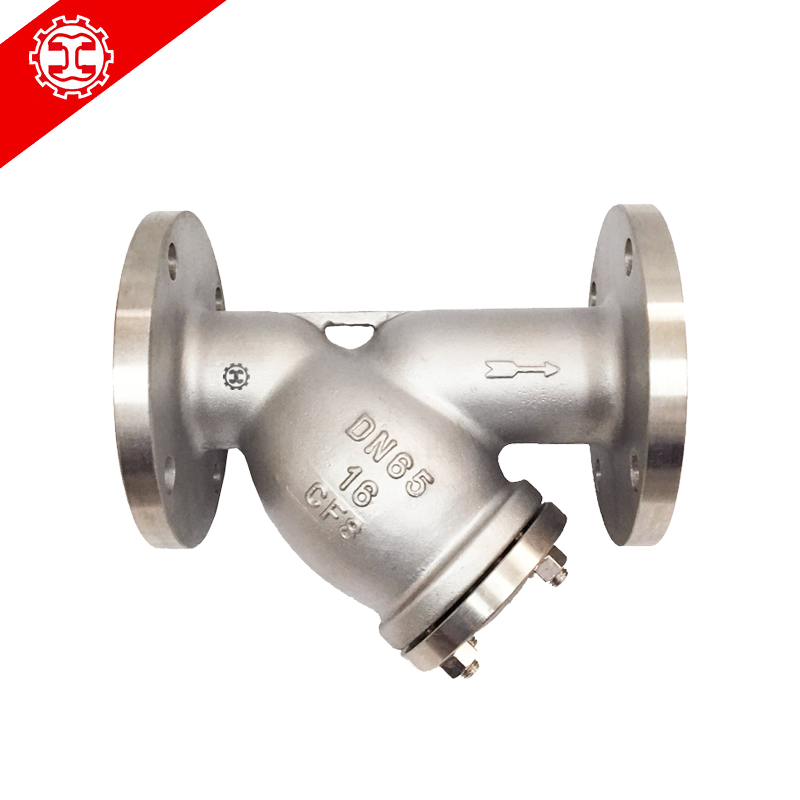

Overview of GL41 Stainless Steel Y-type Filter

The GL41W-16P~64P stainless steel Y-type filter is an indispensable device in the pipeline series for conveying media.

 It is usually installed at the inlet end of pressure reducing valves, safety valves, constant water level valves or other

equipment to remove impurities in the medium and protect the normal operation of valves and equipment. This filter

features an advanced structure, low resistance and convenient sewage discharge. The applicable media can be water, oil or gas.

 Filter screens can be made according to the user's requirements. Their external shapes are basically the same (Y-shaped),

and all internal components are made of stainless steel, which is sturdy and durable. When cleaning is needed, just take out

 the detachable filter cartridge, remove the filtered impurities, and reinstall it. It is extremely convenient to use and maintain.

、 This filter is small in size, with fine filter holes, low resistance, high efficiency, convenient for installation and maintenance, low cost,

and short drainage time. For general small-sized models, it only takes 5 to 10 minutes. The general mesh size of the water passage mesh is

18-30 mesh /cm ², that of the gas passage mesh is 40-100 mesh /cm ², and that of the oil passage mesh is 100-300 mesh /cm ².
